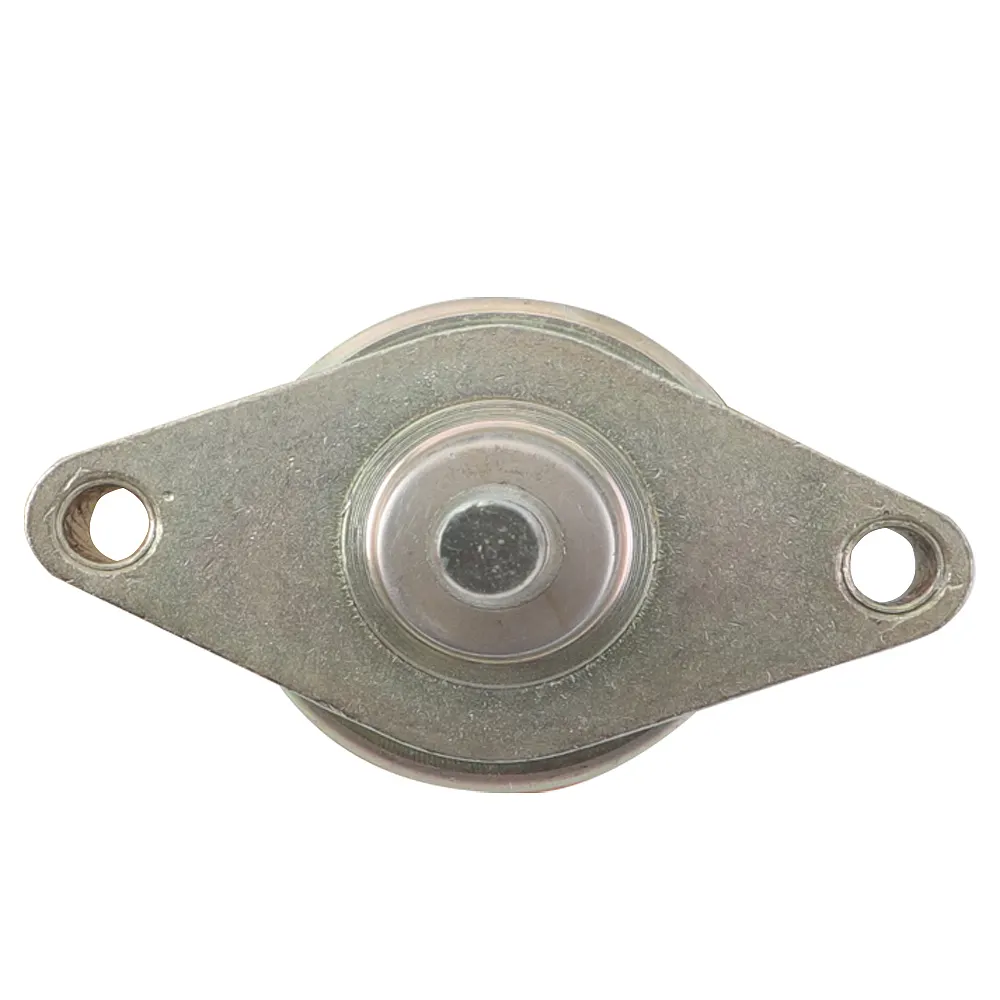

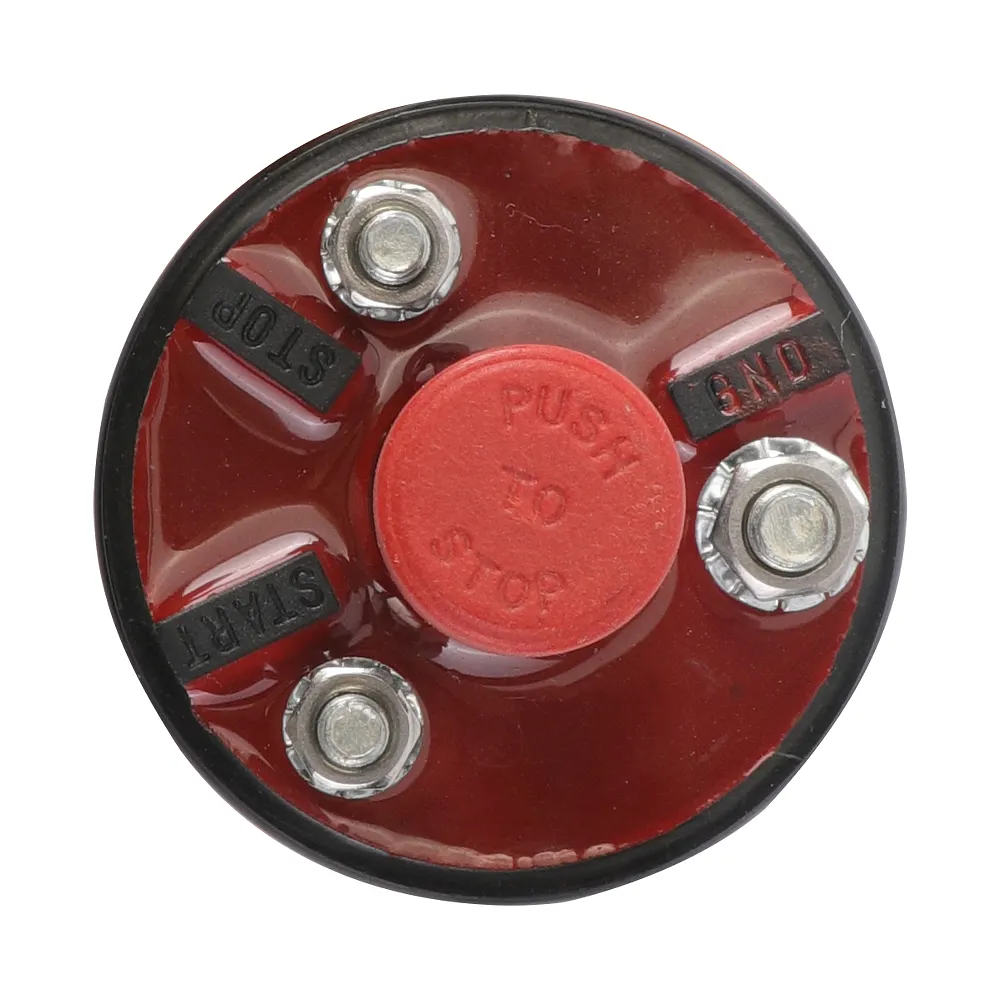

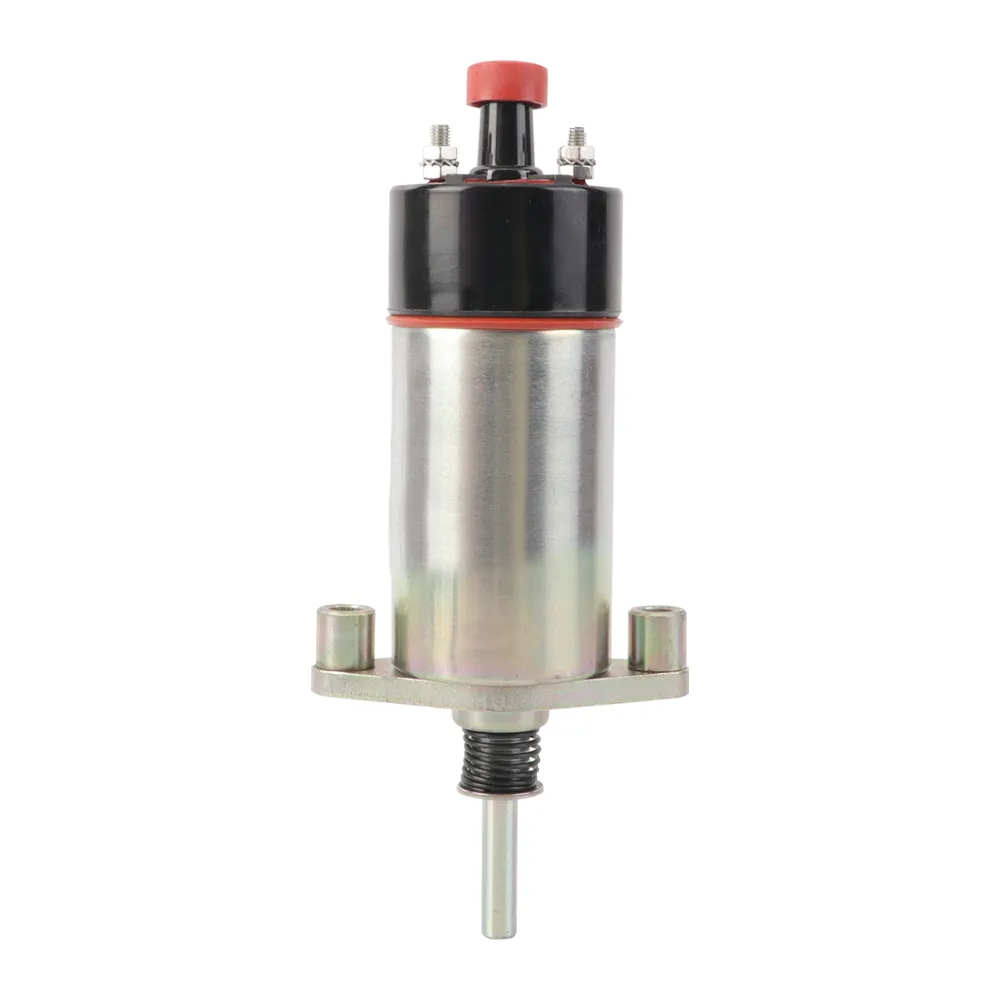

Part Number: 155-4653, 3E-7985
Application for:
EXCAVATOR: 330, 330B L, 350, W330B
MOTOR GRADER: 12G, 12H, 12H ES, 12H NA, 140G, 140H, 140H ES
140H NA, 143H, 14G, 14H NA, 160H, 160H NA, 16H NA
TRACK LOADER: 973C, 25, 545
ENGINE: 3304, 3306, 3406, 3406B, 3406C
1. The solenoid valve is divided into three categories in principle:
Direct acting solenoid valve
Principle: When energized, the electromagnetic coil generates electromagnetic force to lift the closing member from the valve seat, and the valve opens; when the power is off, the electromagnetic force disappears, and the spring presses the closing member on the valve seat and the valve closes.
Features: It can work normally under vacuum, negative pressure and zero pressure, but the diameter generally does not exceed 25mm.
Step-by-step direct action
Principle: It is a principle that combines direct action and pilot type. When there is no pressure difference between the inlet and the outlet, the electromagnetic force directly lifts the pilot small valve and the main valve closing member upwards in turn, and the valve opens. When the inlet and outlet reach the starting pressure difference, after power on, the electromagnetic force pilots the small valve, the pressure in the lower chamber of the main valve rises, and the pressure in the upper chamber drops, so that the pressure difference pushes the main valve upward; when the power is off, the pilot valve uses a spring The force or medium pressure pushes the closing piece and moves downward to close the valve.
Features: It can be operated under zero pressure difference or vacuum and high pressure, but the power is large, and it must be installed horizontally.
Pilot solenoid valve
Principle: When energized, the electromagnetic force opens the pilot hole, the pressure in the upper chamber drops rapidly, and a high pressure difference is formed around the closing part. The fluid pressure pushes the closing part to move upward, and the valve opens; when the power is off, the spring force controls the pilot The hole is closed, and the inlet pressure quickly passes through the bypass hole to form a low and high pressure difference around the valve closing member. The fluid pressure pushes the closing member to move downward to close the valve.
Features: The upper limit of the fluid pressure range is high and can be installed arbitrarily (customization is required) but must meet the fluid pressure difference conditions.
2. The solenoid valve is divided into six sub-categories from the difference in valve structure and material and principle: direct-acting diaphragm structure, stepwise direct-acting diaphragm structure, pilot diaphragm structure, direct-acting piston structure, Step-by-step direct-acting piston structure, pilot piston structure.
3. Solenoid valves are classified according to their functions: water solenoid valves, steam solenoid valves, refrigeration solenoid valves, cryogenic solenoid valves, gas solenoid valves, fire solenoid valves, ammonia solenoid valves, gas solenoid valves, liquid solenoid valves, micro solenoid valves, Pulse solenoid valve, hydraulic solenoid valve normally open solenoid valve, oil solenoid valve, DC solenoid valve, high pressure solenoid valve, explosion-proof solenoid valve, etc.
