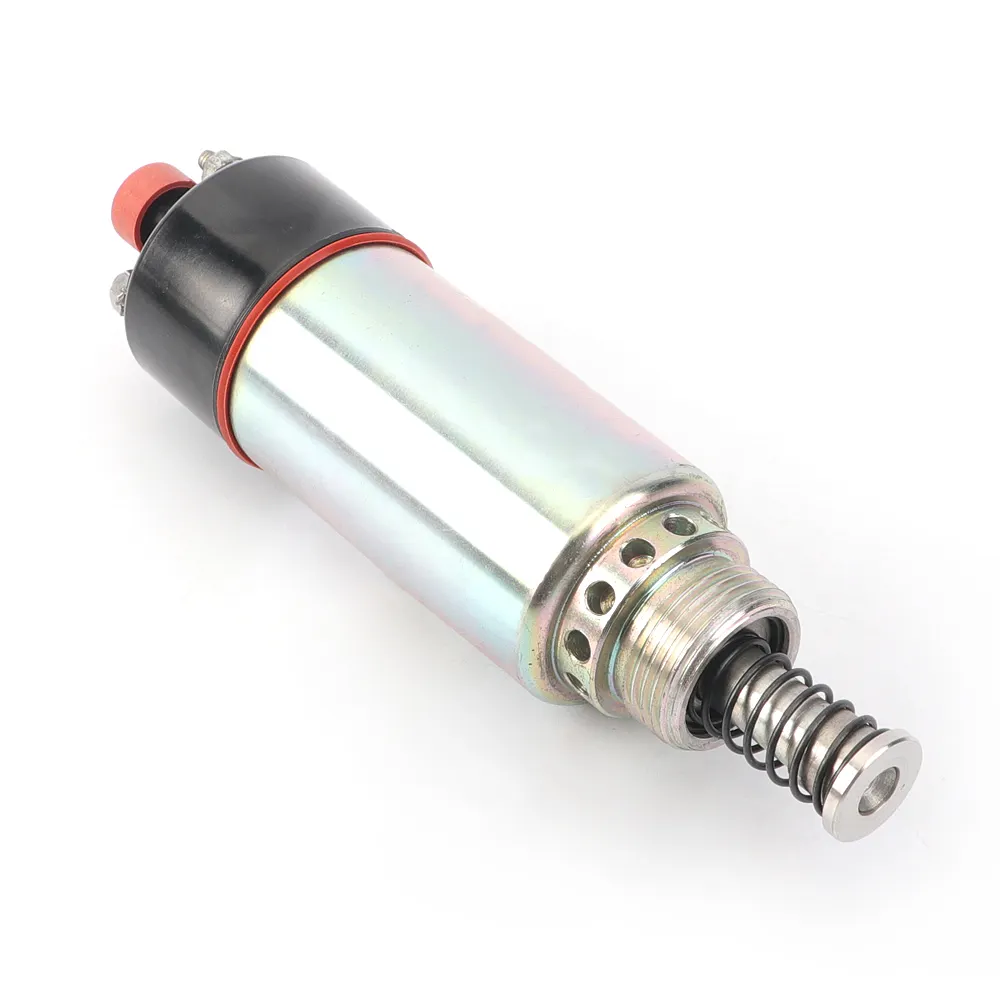

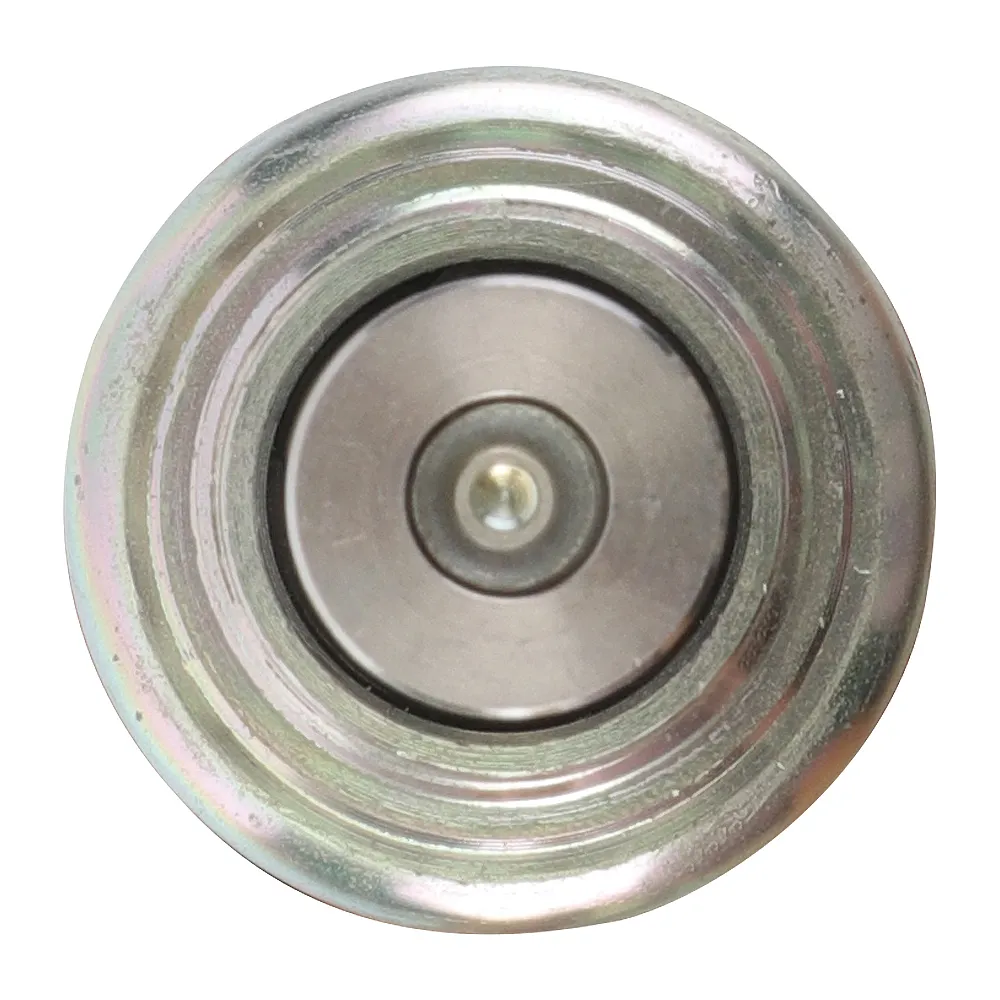

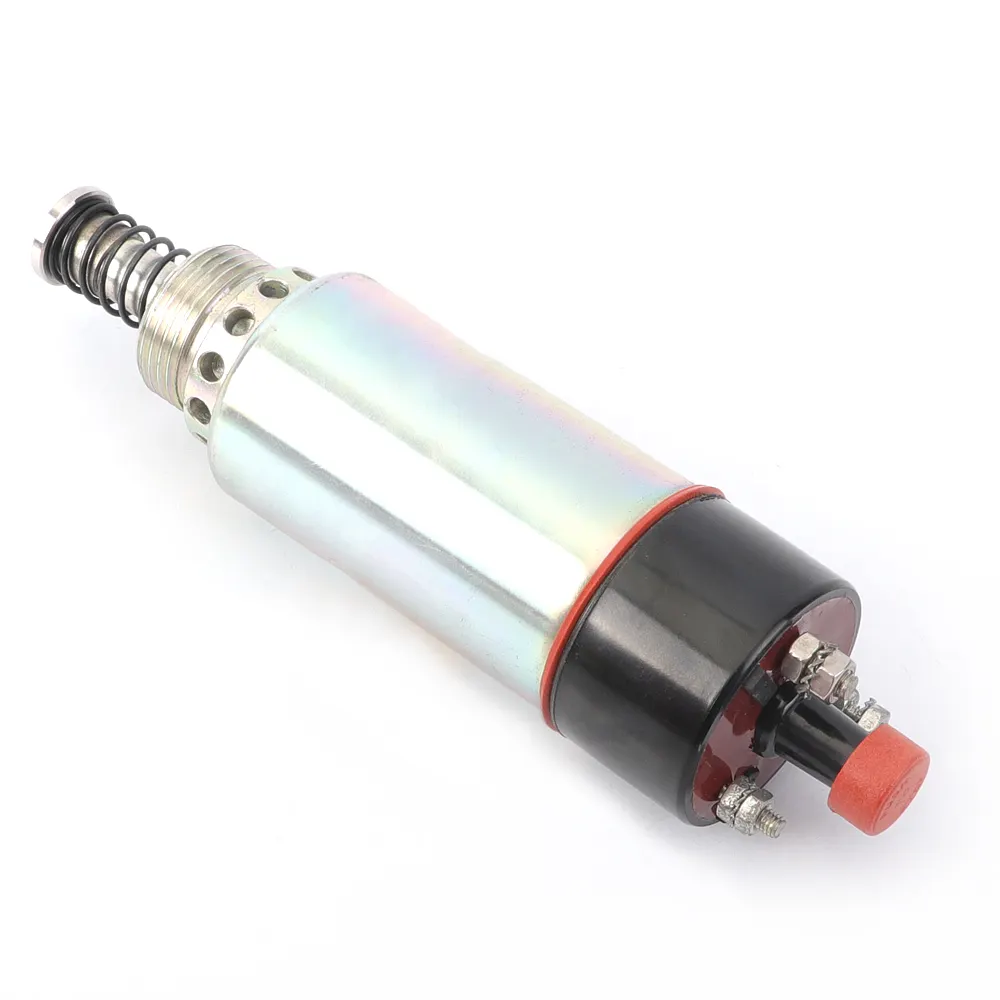

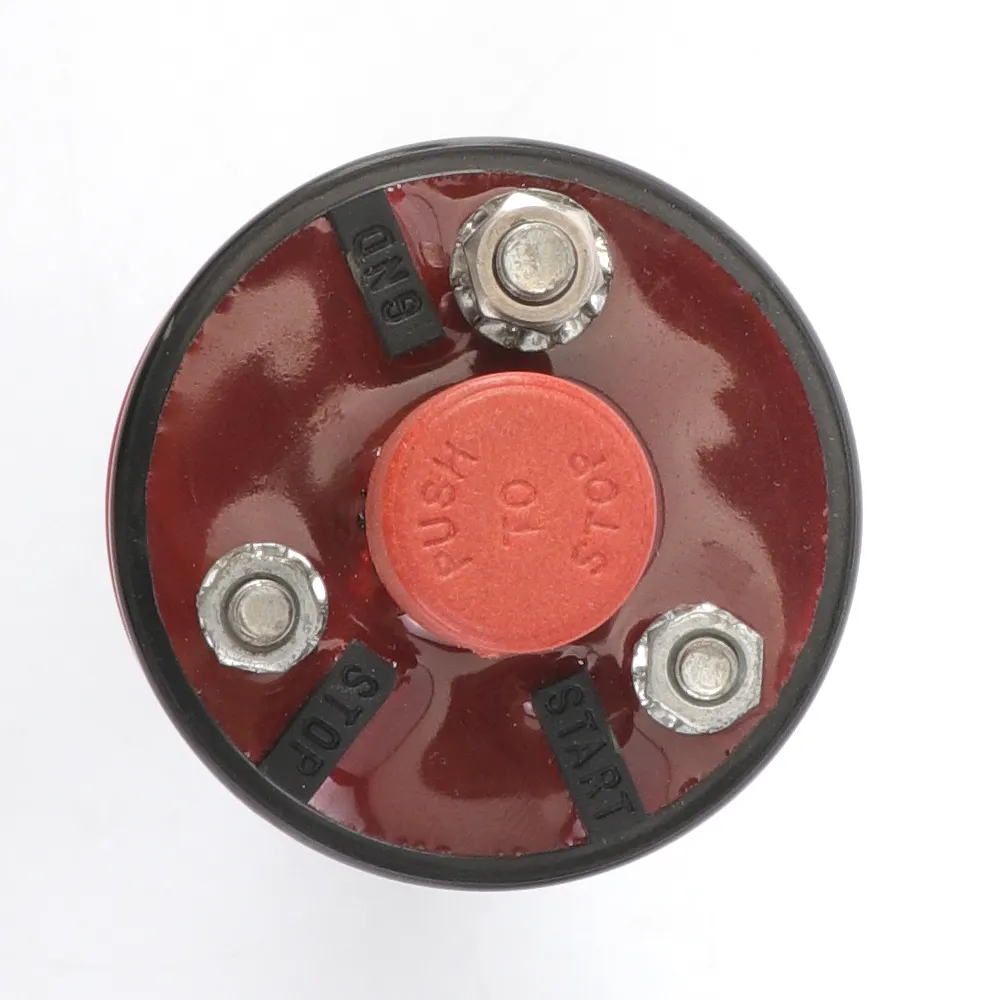

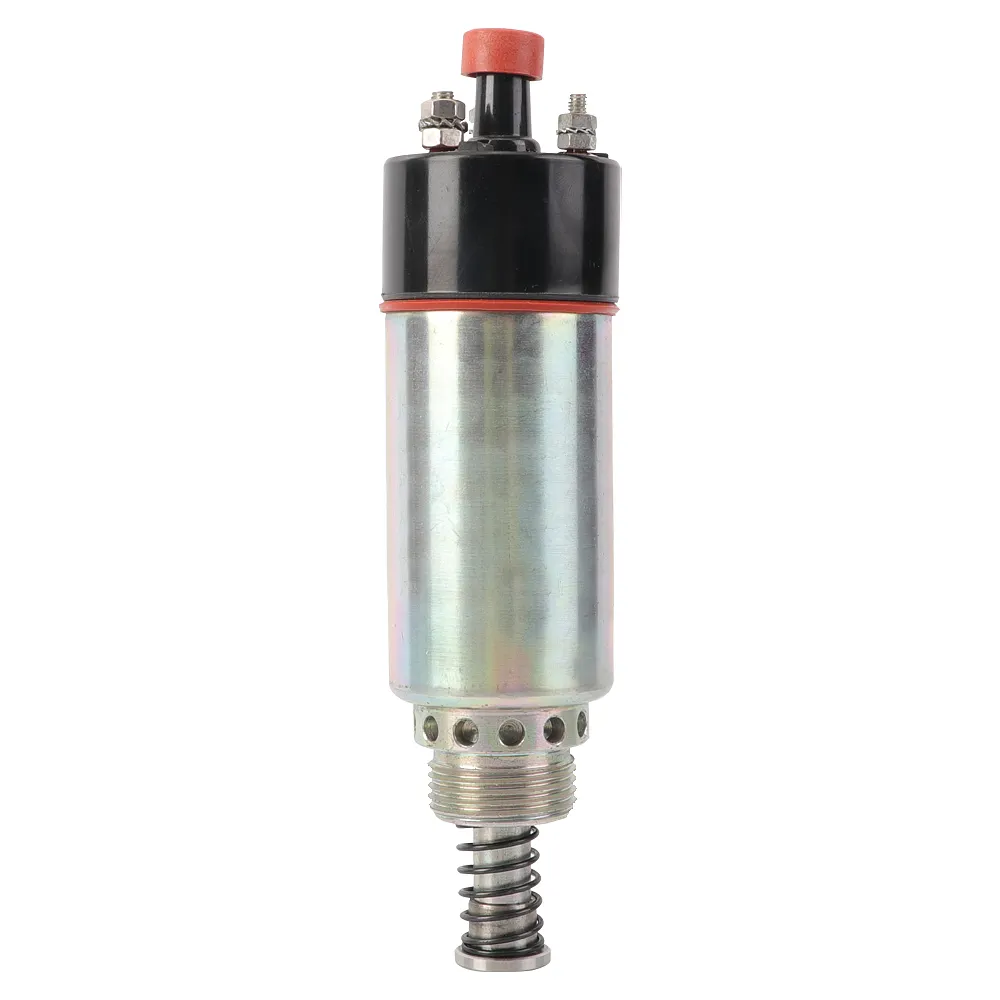

24V 8C-3663 155-4652 125-5772 Shut Off Solenoid for Cat 3126

Specification

FREE SHIPPING BY USPS 1-3 DAYS ARRIVE ,NEW ,USA BASED SELLER

Fits for  EXCAVATOR  320B   322B L   322B LN   322C   322C FM   325B L

INDUSTRIAL ENGINE  3114   3116   3126

INDUSTRIAL TRACTOR  TK371   TK381

INTEGRATED TOOLCARRIER  IT12B   IT24F   IT28F   IT28G   IT38F   IT38G   IT62G

KNUCKLEBOOM LOADER  539

MARINE ENGINE  3116   3126

MOTOR GRADER  120H   120H ES   120H NA   135H   135H NA

PIPELAYER  561M

TRACK LOADER  953C   963B   963C

TRACK-TYPE TRACTOR  D5M   D6M

VIBRATORY COMPACTOR  CB-634C   CP-563   CS-531C   CS-531D   CS-533C   CS-533D   CS-563C   CS-563D   CS-573C   CS-573D   CS-583C   CS-583D

WHEEL FELLER BUNCHER  533   543   TK370   TK380

WHEEL LOADER  924F   928G   938F   938G   950F   950F II   950G   960F   962G

WHEEL SKIDDER  525B   535B

WHEEL TRACTOR  613C II

WHEELED EXCAVATOR  M318   M320   M325B   Caterpillar

Description

There is a closed cavity in the solenoid valve with through holes at different positions.

Each hole is connected to a different oil pipe. In the middle of the cavity is a piston.

There are two electromagnets on both sides. Which side of the magnet coil will be attracted to the valve body when it is energized.

On the other hand, by controlling the movement of the valve body to open or close the different oil discharge holes, and the oil inlet is normally open, the hydraulic oil will enter the different oil discharge pipes, and then the piston of the cylinder is pushed by the oil pressure. Drive the piston rod, and the piston rod drives the mechanical device. In this way, the mechanical movement is controlled by controlling the current on and off of the electromagnet.
